Zega

ZEGA LED Module: RIG Series

Regular price: $25.99 CAD
Regular price
Sale price: $25.99 CAD
Unit price: per

Shipping calculated at checkout.

Title RIG-02-1600-830-120-S3 RIG02-2000-830-120-S3 RIG02-3000-830-120-S3 RIG03-4000-830-120-S3 RIG03-5000-830-120-S3 RIG03-6000-830-120-S3

Product variants

Quantity

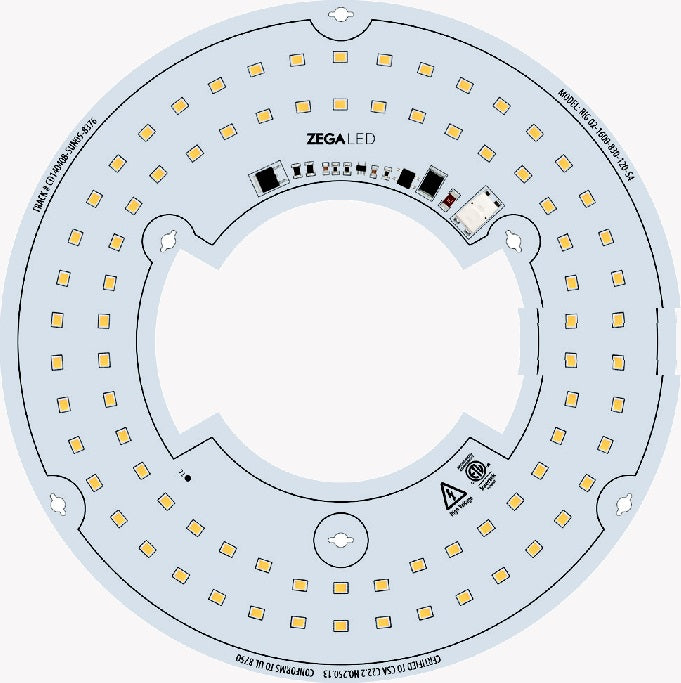

High Performance SMD Driverless LED Light Engines

Lumen Output options: 1600 lm, 2500 lm, and 3000 lm.

Product Code	Dimensions [mm]	Input voltage [ V]	Power factor	System efficacy [lm/W]	Power Dissipation [W]	Lumen output [lm]	CCT [K ]	CRI [Ra]
RIG 02-1600-830-120-S3	D230	120	0.9	90	17	1600	3000	80
RIG 02-2000-830-120-S3	D230	120	0.9	90	23.5	2000	3000	80
RIG 02-3000-830-120-S3	D230	120	0.9	90	36.5	3000	3000	80
RIG 03-4000-830-120-S3	D305	120	0.9	90	45	4000	3000	80
RIG 03-5000-830-120-S3	D305	120	0.9	90	62.5	5000	3000	80
RIG 03-6000-830-120-S3	D305	120	0.9	90	77.5	6000	3000	80
